Scanogram or EOS: Which Full-Leg Measurement Is More Accurate?
A scanogram is a long-leg X-ray used to measure limb length and alignment. EOS captures the same measurements in a single standing pass with about 90% less radiation than a standard X-ray, around ten times less. Because EOS images the whole limb in one sweep, it avoids the stitching errors and magnification issues that can affect traditional scanograms.
Key takeaways
- A scanogram stitches multiple exposures together, which can introduce measurement error if the patient moves.
- EOS uses slot-scanning technology to image both legs in a single, continuous pass while you stand.
- Standing imaging shows how your bones and joints behave under your own body weight, which lying-down scans cannot.
- EOS delivers about 90% less radiation than a standard X-ray, around ten times less.
- Both methods have a role, but EOS reduces the main sources of inaccuracy in full-leg films.
What is a scanogram and how does it work?

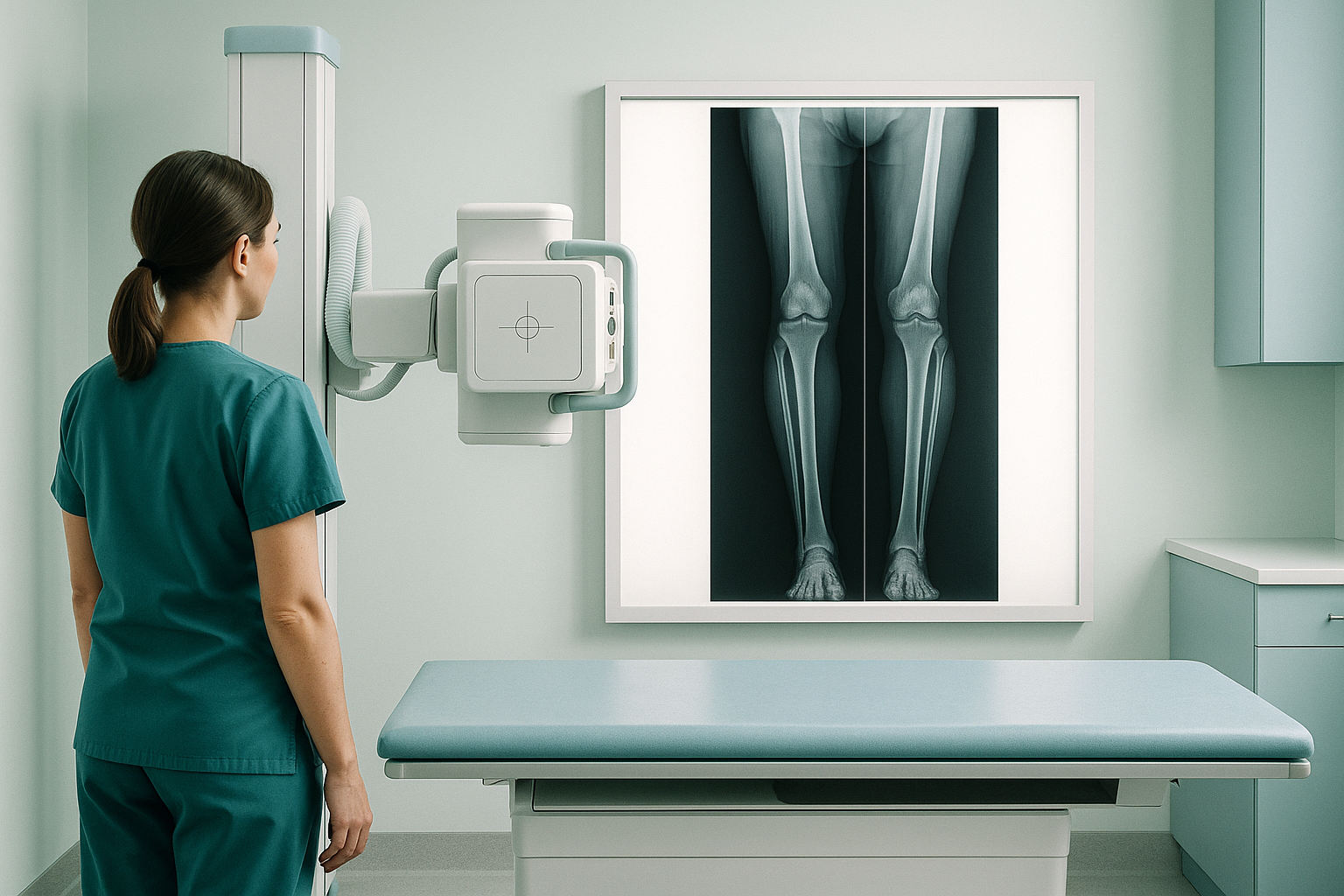

A scanogram is a type of full-leg standing x-ray that measures the length and alignment of your lower limbs. The traditional method takes three separate X-ray exposures, one at the hip, one at the knee and one at the ankle, and digitally stitches them into a single long image.
This stitched image, sometimes called a long leg film, lets a clinician draw measurement lines from the hip joint to the ankle to check for differences in leg length or angular alignment. Scanograms have been used reliably for decades and remain a common request from orthopaedic surgeons.
However, because the image is assembled from separate exposures, each taken with a slightly different X-ray beam angle, two well-known problems can creep in: magnification distortion and stitching artefact.
Why do scanogram measurements sometimes lack accuracy?
Scanogram measurements can be affected by several technical factors. None of these make a scanogram useless, but they explain why surgeons increasingly request EOS when precision matters most.
If you shift even slightly between exposures, the images may not line up perfectly where they join. This mismatch can add or subtract from the true length.
Standard X-rays use a cone-shaped beam. Objects closer to the source appear larger. Without careful calibration, bone lengths can be over- or under-estimated.
A full-leg scanogram can take several seconds across three exposures. Any weight shift or rotation during that time affects the final composite.
EOS addresses these problems by using slot-scanning technology. A narrow fan beam sweeps from head to toe in one continuous pass. There is no stitching because the image is captured in a single acquisition. The parallel-beam geometry also keeps magnification consistent from top to bottom, removing the need for post-processing calibration.
Because EOS scans you in a standing position, the image reflects how your legs actually bear weight. Lying-down imaging relaxes the muscles and can mask the true alignment, so a standing scan often tells a different, more clinically useful story. Learn more about lower limb alignment and why weight-bearing position matters.
How does EOS compare with a scanogram for full-leg imaging?
EOS and scanograms both produce a long image of the legs, but they differ in how that image is acquired and what it can show. The table below summarises the key differences.
| Feature | Traditional scanogram | EOS |
|---|---|---|
| Acquisition method | Multiple exposures stitched together | Single continuous slot scan |
| Patient position | Standing or lying (varies by department) | Standing, weight-bearing |
| Stitching artefact risk | Present at each join | None, single-pass image |
| Magnification | Cone-beam distortion, requires calibration | Minimal, near 1:1 scale |
| Radiation | Standard X-ray dose | About 90% less than a standard X-ray |
| Simultaneous biplanar images | Not available | Front and side views captured at once |
| 3D reconstruction | Not possible from a single scanogram | Available from the biplanar data |
For a broader look at how EOS fits alongside other imaging methods, read our guide to EOS compared with x-ray, CT and MRI.
When MRI is the better choice: EOS shows bones, joints and alignment clearly. For soft-tissue detail, such as discs, cartilage, ligaments or nerves, MRI is usually the better tool. Your clinician can advise which scan you need.
How do I book a standing full-leg scan with EOS?
You can self-refer for an EOS standing x-ray at ScanAlign, standing EOS imaging in London. No GP referral is needed. Here is what to expect.
Free video consultation
A specialist radiographer reviews your history and confirms whether an EOS scan is the right next step for you.
Your scan at 19 Harley Street
You stand in the EOS booth in normal clothing (no metal). The scan takes under a minute and captures front and side views simultaneously.
Detailed report
Your images and measurements are compiled into a clear report, ready to share with your treating clinician.
Next steps
You and your clinician use the report to guide any further decisions. ScanAlign is a diagnostic clinic, so treatment happens with your chosen specialist.
Ready to get accurate full-leg measurements with less radiation?
Book a free video consultationFrequently asked questions
A scanogram is a full-leg X-ray used to measure leg length differences and overall limb alignment. Orthopaedic surgeons commonly request one before or after joint replacement or corrective surgery.
A CT scanogram is a scout image produced by a CT scanner. It gives good length measurements but uses a higher radiation dose than a plain X-ray scanogram and images you lying down, so it does not show weight-bearing alignment.
EOS uses about 90% less radiation than a standard X-ray, around ten times less. A traditional scanogram delivers a standard X-ray dose, so EOS is significantly lower.
When you stand, gravity and your muscles influence joint angles and alignment. Lying down relaxes everything, which can hide a tilt, rotation or length difference that only appears under load. Standing imaging captures what your body actually does when you are on your feet.
A traditional scanogram takes separate X-ray shots of the hip, knee and ankle, then joins them digitally. If you move between shots, the images may not line up perfectly. The mismatch at each join is called a stitching artefact and it can affect measurements.
No. ScanAlign accepts self-referrals. You start with a free video consultation where a specialist radiographer checks whether the scan is appropriate for you.
ScanAlign is a private, self-pay clinic. Current pricing details are available on the book a full-leg standing scan page or by contacting the clinic directly.
Yes. Because EOS captures front and side views at the same time (simultaneous biplanar images), the data can be used to build a 3D reconstruction of your bone and joint geometry. A standard scanogram cannot do this.
EOS offers clear advantages in radiation dose, stitching accuracy and weight-bearing positioning. A traditional scanogram remains a perfectly valid tool in many departments and your surgeon may have good reasons for requesting one. The two are not in competition for every scenario.
You can wear normal clothing as long as it has no metal zips, buttons or fastenings in the scan area. The radiographer will advise you on the day and provide a gown if needed.
Get precise, low-dose full-leg measurements
A standing EOS scan captures your true alignment in one pass, with less radiation and no stitching artefact. Start with a free video consultation to see if it is right for you.
Book a free video consultationSources
- Deschênes S, Charron G, Beaudoin G, et al. "Diagnostic imaging of spinal deformities: reducing patients' radiation dose with a new slot-scanning X-ray imager." Spine, 2010;35(9):989-994.
- Illés T, Somoskeöy S. "The EOS™ imaging system and its uses in daily orthopaedic practice." International Orthopaedics, 2012;36(7):1405-1411.
- NHS England. "Diagnostic imaging dataset statistical release." Available at digital.nhs.uk.
Written by Abbas Dhami (Specialist Diagnostic Radiographer)
This page is general information and not a diagnosis.
